BR-400 or Prinoth 50'

AERIAL MAINTENANCE/RESCUE UNIT


The BR is actually the name of the vehicle we install our units on. We can install our entire line of products. From the RH35 to the RH50D sky is the limit. With its working height of 50 ft. (15, 25 m) and its side reach of 39 ft. (11,90 m) it is commonly used for ski patrol assistance, chairlifts and snowmaker maintenance, light post maintenance, pruning and so many more.
Our tiltable base allows you to level your aerial lift as if your hillside grooming machine were on a horizontal surface. You can thus work on a 45˚ slope. Equipped with 2 stabilizers, the unit guarantees a safe working environment.
The lifting ring is located at the end of the second section; it is a standard accessory and can lift loads of 550 lbs (250 kg) in any position, regardless of carrier vehicle. And that’s not to mention the many other benefits and options available to ensure that RH aerial lift equipment meets your peculiar needs. Feel free to contact us for more information.



• Faster completion of aerial work
• Faster access to slope lighting devices
• Faster access to lift machinery
• Faster access to snow making equipment
• Improved tree-trimming capability

• Ski patrol assistance capability
• Working height up to 50 ft
• Insulated and non-insulated models
• Compliance with CSA, ANSI, and   OSHA    standards




Specification

Est. working height  (A)15.24m (50')
Horizontal reach      (B)11.88m (39’)
Length (retracted)   (C)5.78m (19')
Interior width           (D)49 cm (19")
Bucket capacity159 kg (350 lbs)
Lifting ring 250 kg (550 lbs)
Rotation360° continue (opt.)
Elevation degrees-5° to 80°
Approx. weight658 kg (1450 lbs)
Overall height82’’ (2.08 m)
GVWR min. requiredN/A
Hydraulic pressure20684 kPa (3000 psi)



* Information shown can vary depending on truck and/or options
ask a representative for more details

BATTERIES

OPERATED

The connection of the auxiliary battery isolates the vehicle’s aerial lift equipment. The unit will work without the vehicle engine on. In any case, it will affect the vehicle’s battery; it is actually an additional security because if the truck’s battery needs a little “boost”, due to the type of connection, it can feed of the auxiliary battery. All our units have a two-way splitter between the auxiliary battery and the vehicle. We make no modification to your vehicle, only a wire is connected to the alternator which is used to recharge the auxiliary battery when the vehicle is running.


In addition, we can provide additional security by adding a system such as Ozone-tech. This product requires removing the keys from the ignition; press an activator button to operate the unit. Ozone-tech is perfect for fleet owners that want to have some control over the fuel consumption. The system ensures optimum battery management and will turn on the engine if the vehicle needs to recharge the battery to its maximum capacity.

Advanced

Design

& Engineering

RH Ladder uses advanced structural optimizing simulations to ensure safety and  enhance toughness. Our engineering approach considers all attributes such as weight, resistance, quality, performance and  manufacturability.

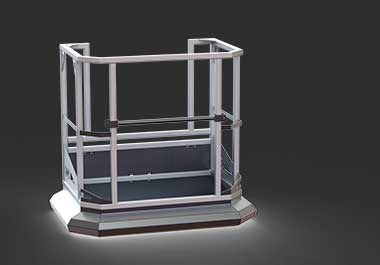

X-TRA large BUCKET

RH equipment offer a larger size aluminum bucket for more versatility and resistance. Most common use are in signs in business and construction. Could suit multiple other work needs.

more

Options

Options available

HIGH PRECISION

MANUFACTURING

ROBOTIC WELDING

Accuracy is crucial to achieve consistent quality. RH Ladder uses water jet and laser cutting, along with robotic welding, to deliver constant precision and reliability.


Water jet Cutting


Numeric tooling technologies
